Overview

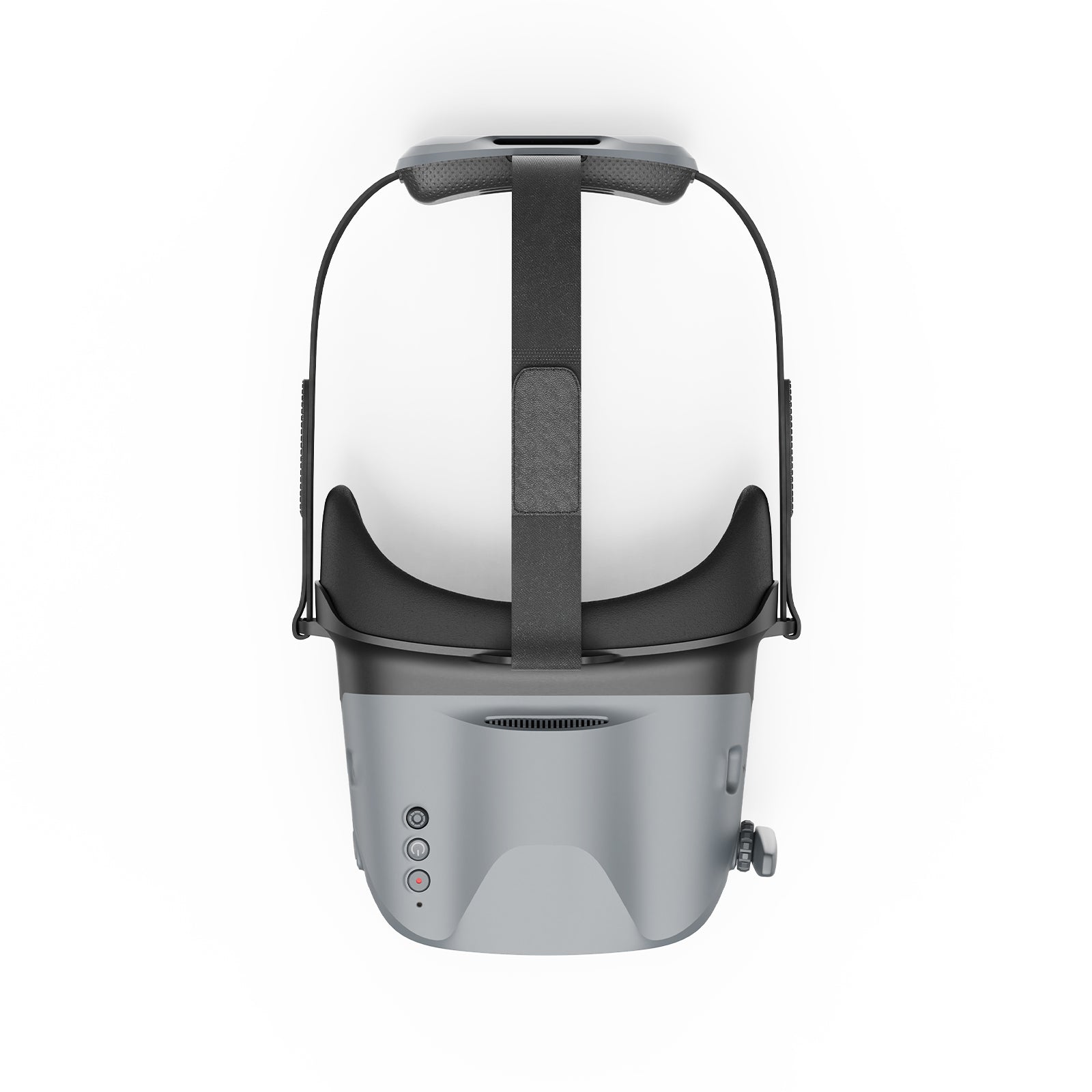

BetaFPV VR04 is an Analog FPV Goggles product designed for 5.8G analog FPV drones, featuring a 4.3 inch 800*480 screen, NTSC/PAL support, 48CH receiver, and built-in DVR recording to microSD. A glasses-friendly interior space (144mm x 54mm) with premium PU padding and a light-blocking face fit helps improve comfort for longer sessions.

Key Features

• Glasses-friendly fit with ample internal space (144mm x 54mm).
• Full light-blocking design with contoured face padding and soft nose bridge.
• Built-in 3.7V 2000mAh battery; about 2 hours in normal mode and about 1 hours in recording mode.
• Flexible power input: can be powered by 2–6S whoop batteries (external power port available).
• One-button DVR recording to microSD card (not included), FAT32 only, maximum 64GB; recording format AVI at 480P@30fps.
• 48CH channel support with auto frequency search via 5D button.

For ordering support or compatibility questions, contact [email protected] or visit https://rcdrone.top/.

Specifications

How to Record

• Insert a microSD card into the card slot (FAT32 only, maximum 64G).
• Short press the record button once; a red dot appears in the upper left corner and a “beep-beep” sound is emitted.
• Wait about 8 seconds; the red dot and recording LED indicator start flashing, and a timer appears to indicate recording.
• To stop recording, short press the record button again; after 2-3 seconds the red dot stops flashing, the timer disappears, and the red record LED turns off.

Notes:
1) DVR recording takes about 8-10 seconds to activate after pressing the record button.
2) Maximum length of each recording is 10 minutes; files continue automatically in a new recording when exceeding 10 minutes.

Frequency Search (48CH / 5.8G)

Press and hold the 5D button for 2-3 seconds to activate frequency search. A beep occurs after about 3 seconds and the best available frequency is selected automatically. Signal quality is indicated by colors:

• Green (0<RSSI<20): Frequency is available.
• Yellow (20<RSSI<70): Frequency has moderate interference from another transmitter.
• Red (70<RSSI): Frequency is completely in use by a transmitter.
• White: The strongest signal received in this scan.

What’s Included

• 1 * VR04 FPV Goggles
• 1 * Adjustable Headband
• 1 * User Manual

Applications

• 5.8G analog FPV drone flying
• Whoop and micro FPV setups needing a compact analog receiver display with DVR

Manuals

User Manual for VR04 FPV Goggles

Details

BetaFPV VR04 FPV goggles feature comfortable PU padding, a glasses-friendly fit, a 2000mAh battery rated for about 2 hours, and support for up to 64G storage.

BetaFPV VR04 analog FPV goggles include a micro SD card slot, Type-C charging, DC5.5 power input, and a 5D control button for easy operation.

BetaFPV VR04 analog FPV goggles feature a full light-blocking face interface, PU padding, and space to wear with glasses.

BetaFPV VR04 analog FPV goggles combine a built-in 2000mAh battery with a flexible 2–6S power input for extended run time.

Built-in recording lets you save the live FPV feed directly to the goggles with an on-screen timer and channel readout.

BetaFPV VR04 analog FPV goggles come with the headset, a soft carrying pouch, and a printed manual for quick setup.
